BMW B48 Engine Water Pump
B48 Engine Water Pump Leakage
Water pump leakage on the BMW B48 engine is a fairly common issue and can be considered a known “weak spot” for this powerplant. The problem largely stems from the engine’s design characteristics and material choices. Drivers often see warnings on the dashboard indicating low coolant levels, with prompts to top up. When this happens, the cooling system has typically developed a fault.
The B48 engine’s water pump uses a valve-style design. While this configuration has its advantages, it can sometimes hinder heat dissipation, placing additional strain on the pump and surrounding components. Prolonged exposure to high temperatures causes the rubber seals and plastic parts inside the pump to degrade, leading to leaks.
B48 Water Pump Installation
01 – Remove the Old Seal Ring
Before installing a new water pump, be aware that the old pump’s valve seal ring can easily become dislodged and remain inside the valve cavity. Make absolutely sure the old seal ring has been removed. If it’s left in place, installing the new pump will feel noticeably difficult. Forcing the new pump in without removing the old seal could damage the new pump’s valve. Even if installation appears successful at first, it will almost certainly develop leaks or fail to operate properly down the road.
02 – Check the Plug
Before fitting the new pump, always inspect the plug at the top of the pump valve. This part is made of plastic and is prone to cracking or breaking. Overlooking this step can lead to improper installation or prevent the new pump from functioning correctly.
03 – Confirm the Flap Shaft Alignment
When inserting the valve assembly into the engine block, be sure to verify that the flap shaft is seated level. You can test this by manually moving the flap to check that it operates smoothly. This step ensures the conversion valve assembly works properly once installed.

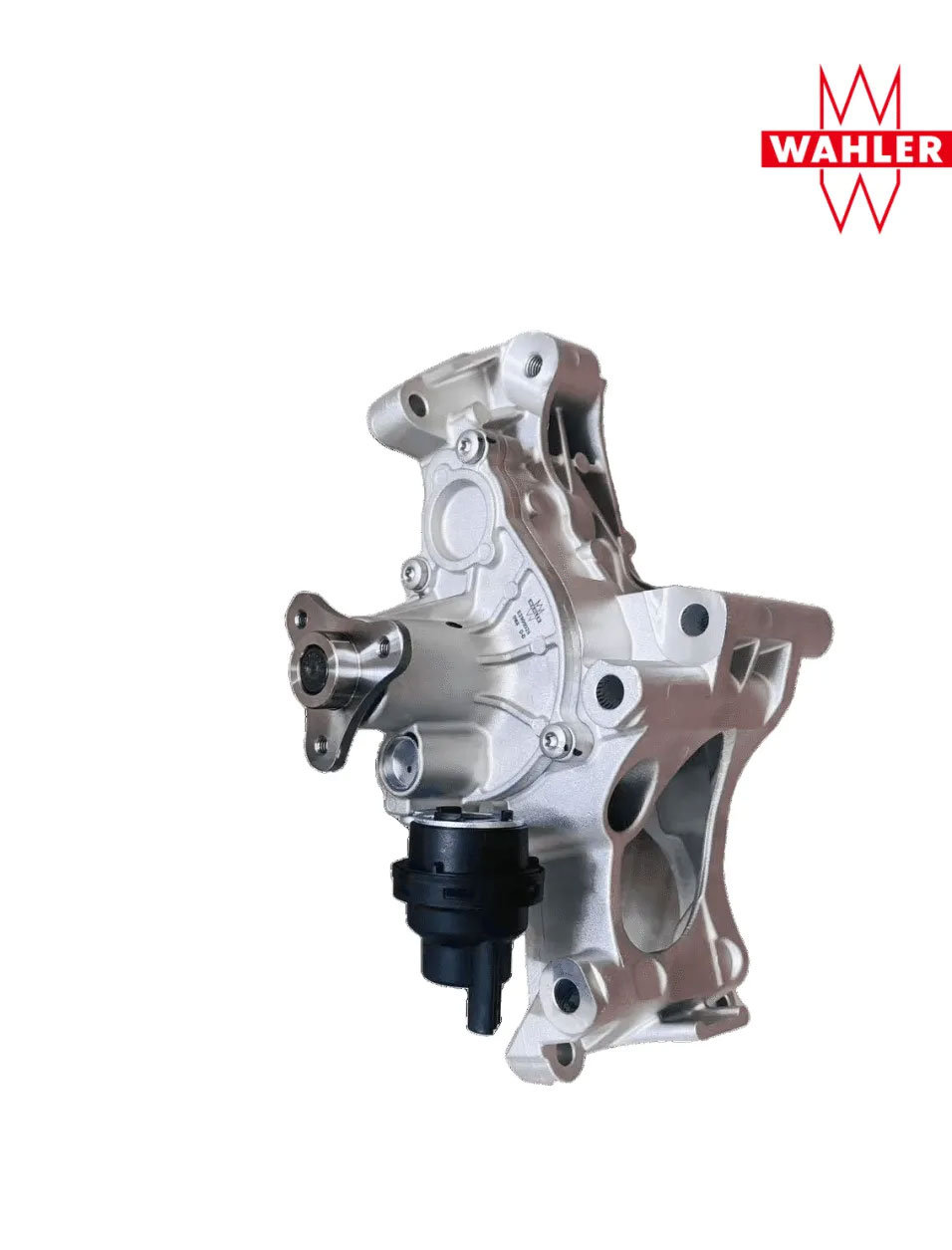

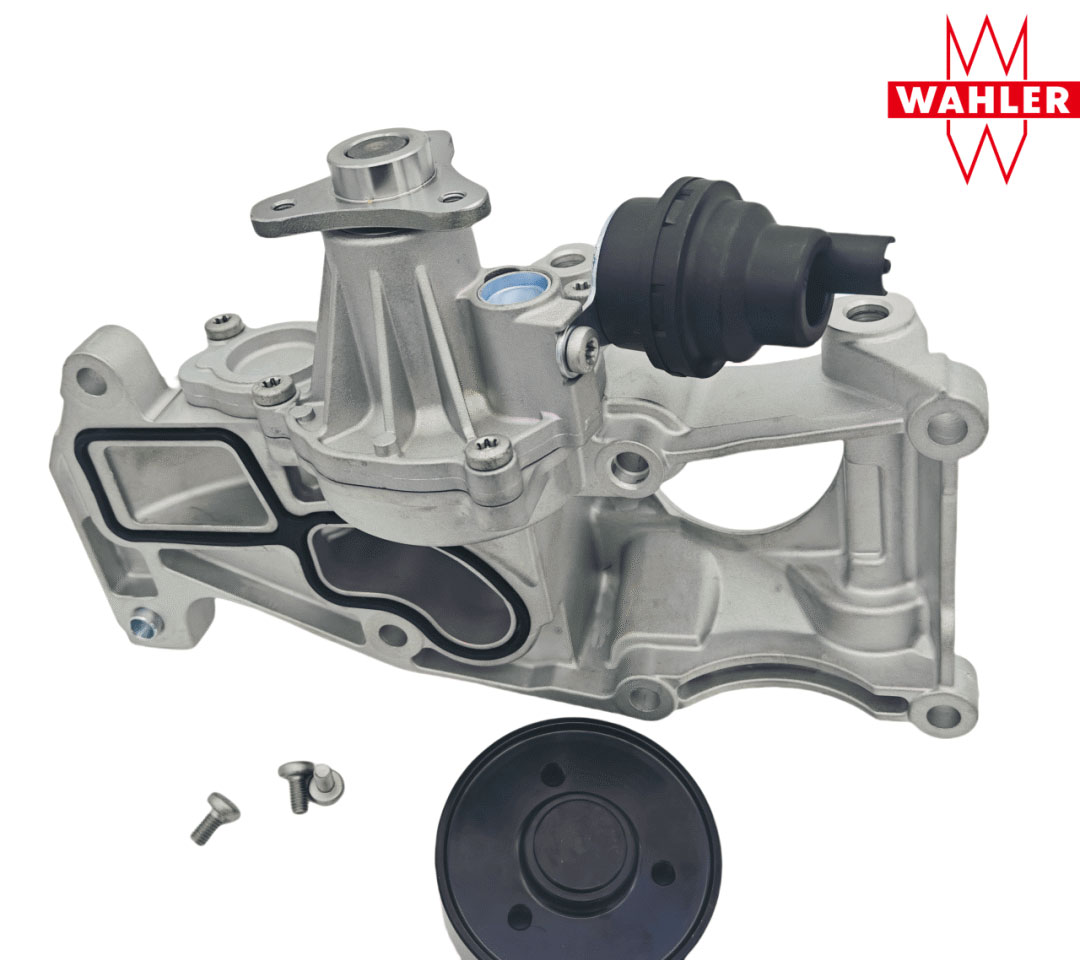

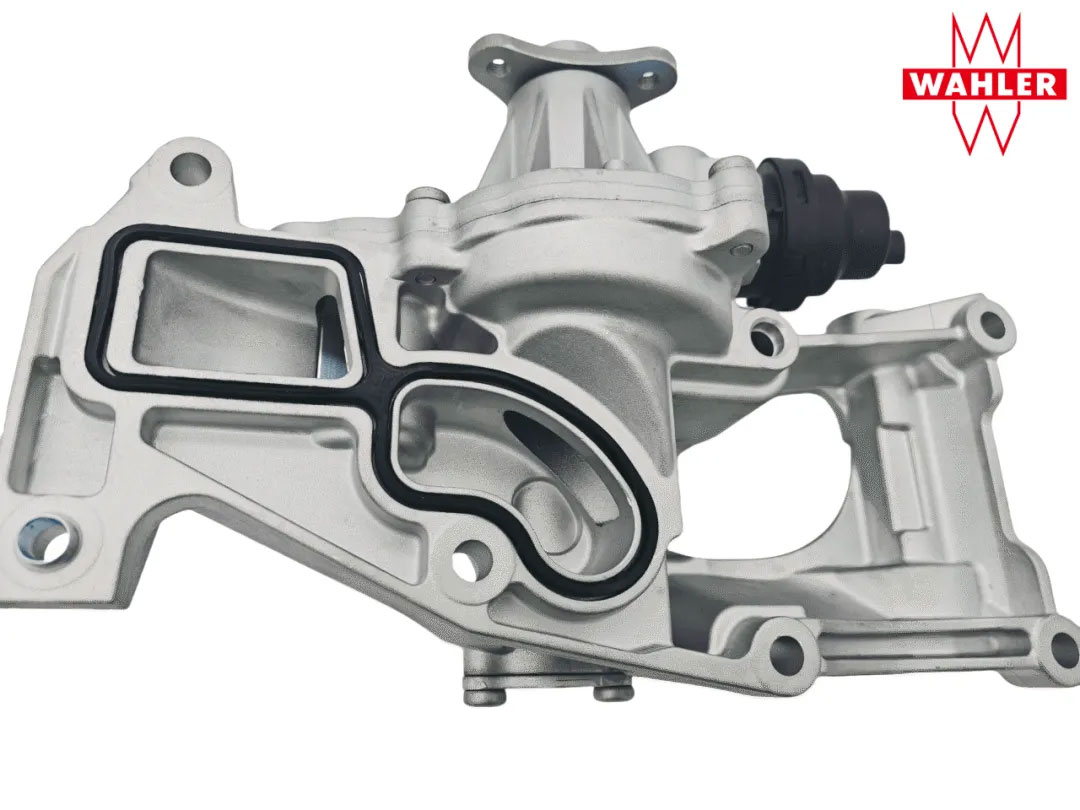

WAHLER Pump Advantages
01 – Wheel/Pulley
WAHLER mechanical water pump pulleys are forged from C45 steel, offering superior wear resistance and longer service life.
02 – Air Bleed Valve & Water Valve
By eliminating the air bleed valve and water valve, WAHLER’s design improves heat dissipation, reduces failure rates, and extends product longevity.
03 – Non-Vertical Evaporation Port
The original design uses a vertical evaporation port, which is prone to contamination from debris, leading to malfunctions. WAHLER’s upgraded version features a non-vertical evaporation port that is much less susceptible to ingressing contaminants.
04 – Design Optimization
The pressure relief valve has been removed in WAHLER’s design, as it only functions when the water valve fails to rotate. This simplification further lowers the failure rate.
